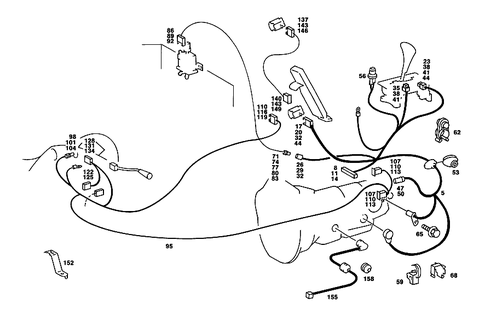

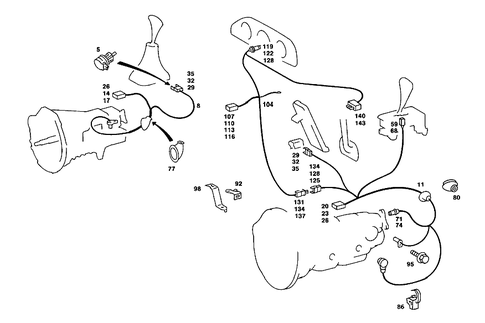

Electrical Parts Used for Transmission for 1984 Mercedes-Benz 380SE
No.
Part # / Description / Price
Price
11
Wiring Harness
Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Automatic transmission with inductive pickup.
17
Housing Upper Part Mercedes-Benz
Mercedes-Benz Description: To 009 545 78 28. To 009 545 80 28. Pin bushing housing 6-polig. To 006 545 08 28. To 006 545 78 28 (asr). 6-pole. To 006 545 80 28,123 545 06 28. (plug upper part).
MSRP $3.20
$2.41
MSRP $3.20
$2.41
20
Plug Housing Mercedes-Benz
Mercedes-Benz Description: 4-matic cable harness plug-connection. 8-pin rk4.0. Cockpit cable harness. 8-pin rk4.0. Rear speed sensor plug connection, bipolar. 8-pin rk4.0. Rpm sensor asr. 8-pin rk4.0.
MSRP $4.90
$3.68
MSRP $4.90
$3.68
23
Cap Mercedes-Benz
Mercedes-Benz Description: To 006 545 81 28,009 545 53 28. Electrical plug-in jumper for sliding roof motor to a 009 545 53 28.
26
Contact Pin Mercedes-Benz
Mercedes-Benz Description: 4.0 MM. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 4.0Release tool: W220 589 01 99 52. TO 009 545 53 28/56 28. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: R ...
MSRP $2.40
$1.78
MSRP $2.40
$1.78
32
Cap Mercedes-Benz
Mercedes-Benz Description: Blower. 2-pin rk4. Back-up lamp cable. 2-pin rk4. To a 008 545 09 28. 2-pin rk4. To a 008 545 08 28. 2-pin rk4. Secondary air pump m33. 2-pin rk4. To 008 545 08 28/008 545 09 28. 2-pin rk4. Air injection m33. 2-pin rk4.
35
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
MSRP $3.40
$2.54
MSRP $3.40
$2.54
68
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 4 MM. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. 2,5 (AX). 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Ma ...
MSRP $2.90
$2.16
MSRP $2.90
$2.16
71
MSRP $8.00
$6.10
74
MSRP $4.50
$3.43
80
Grommet Mercedes-Benz
Mercedes-Benz Description: Blower. Electric cable thru fire wall. Fuel pump branch-off to luggage compartment floor. Automatic transmission branch-off. Electric cable thru tunnel. Scuff protection for electric cables left.
95
Screw Mercedes-Benz
Mercedes-Benz Description: Pane wiper linkage to central part. Strut to main floor and to cross member. Intermediate layer and wiper linkage to central inside part. Strut to stiffening and to front cross member. Air duct to central inside part.
MSRP $2.00
$1.52
MSRP $2.00
$1.52
98
Holder Mercedes-Benz
Mercedes-Benz Description: Rear axle speed sensor plug connection to rear panel. Plug connection to partition panel, right. Plug connection to wheelhouse. Abs plug-connection.
No.
Part # / Description / Price
Price
149
Plug Pin Mercedes-Benz
Mercedes-Benz Description: 4MM. 4.0mm2. Fan. 4.0mm2. TO 008 545 10 28. 4.0mm2.
MSRP $2.70
$2.03
MSRP $2.70
$2.03
