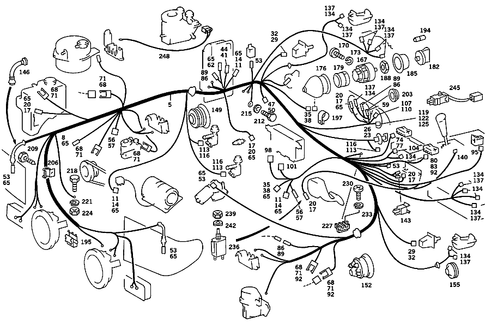

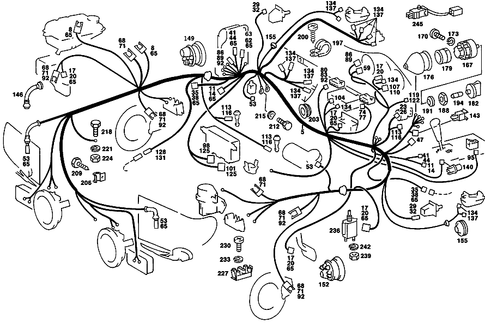

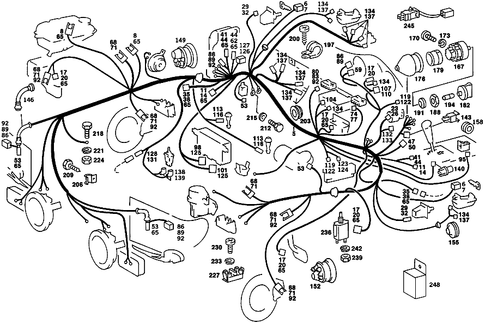

Main Cable Harness for 1989 Mercedes-Benz 560SL
No.
Part # / Description / Price
Price
14
Coupling, Mechanical
Mercedes-Benz
Mercedes-Benz Description: To 006 543 81 28. 8-pole. To 006 545 81 28,009 545 53 28. To 006 545 20 28.
20
MSRP $3.00
$2.29
23
MSRP $3.00
$2.29
26
Cap Mercedes-Benz
Mercedes-Benz Description: Starting ignition switch. To 009 545 73 28, 011 545 45 28. To 009 545 73 28. 019 545 11 28.
MSRP $4.90
$3.68
MSRP $4.90
$3.68
29
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Description: Door contact. Bipolar. Electric motor. Double. 2-pole.
35
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Combination switch plug-connection. 14-pin. 14-pole. 14-pin. Module box cable-harness plugconnection. 14-pin.
44
Housing Upper Part Mercedes-Benz
Mercedes-Benz Description: To 009 545 78 28. To 009 545 80 28. Pin bushing housing 6-polig. To 006 545 08 28. To 006 545 78 28 (asr). 6-pole. To 006 545 80 28,123 545 06 28. (plug upper part).
MSRP $3.20
$2.41
MSRP $3.20
$2.41
50
Cap Mercedes-Benz
Mercedes-Benz Description: Back-up lamp cable. To 007 545 00 28, 015 545 49 28. To 006 545 78 28. Fuel gauge sender unit. 4-pole to 015 545 49 28. Quadruple to 009 545 52 28. To 015 545 49 2,. Turn signal and side marker lamps left. To 009 545 52 28 (asd).
MSRP $5.00
$3.81
MSRP $5.00
$3.81
57
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 4 MM. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. 2,5 (AX). 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Ma ...
MSRP $2.90
$2.16
MSRP $2.90
$2.16
59
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Heating water valve. 4-pole. 4-pin. Outside temperature indicator. 4-pin. Cryostat. 4-pin. Tempmatik control box. 4-pin. Speedometer. 4-pin. Quadruple. 4-pin.
MSRP $2.90
$2.16
MSRP $2.90
$2.16
65
MSRP $3.70
$2.82
71
Cap Mercedes-Benz
Mercedes-Benz Description: Blower. 2-pin rk4. Back-up lamp cable. 2-pin rk4. To a 008 545 09 28. 2-pin rk4. To a 008 545 08 28. 2-pin rk4. Secondary air pump m33. 2-pin rk4. To 008 545 08 28/008 545 09 28. 2-pin rk4. Air injection m33. 2-pin rk4.
71
Cover Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: To 008 545 08 28. Cool box a39/1. To 008 545 09 28. Blower. Brake fluid control,brake lining wear indication.
80
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Description: Compressor switch. Electric window regulator switch. Lower part. Seat heater switch. 6-pole. Circulating air switch. 4-pole. Level switch. 7-pole.
MSRP $4.90
$3.68
MSRP $4.90
$3.68
89
Housing Upper Part Mercedes-Benz
Mercedes-Benz Description: To 008 545 20 28,011 545 10 28. Rear fuel pump cable harness plugconnection.
MSRP $2.70
$2.03
MSRP $2.70
$2.03
92
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
MSRP $3.40
$2.54
MSRP $3.40
$2.54
95
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Hazard warning light switch. Hazard warning light. 8-pole.
98
Receptacle Housing Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Lamp control device;8-pole. 8-pin.
101
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Driver's/co-driver's air bag control unit. Control unit. 16-pole. Lamp control device,16-pole. Seat adjustment control unit.
104
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Amplifier. 4-pin. Cd changer. 4-pin. Info module asr. 4-pin. Function control 4-matic. 4-pin. Timer,heater. 4-pin. Radio current supply. 4-pin. Additional heater preset time switch. 6-pole. 4-pin. 3-pole. 4-pin.
107
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Instrument cluster nr.1. Instrument cluster;4-pole. 15-pole.
113
Housing Lower Part Mercedes-Benz
Mercedes-Benz Description: Buzzer contact;2-pole. 2-pin. Central locking system. 2-pin. Evaporator temperature sensor. 2-pin. Solenoid valve,bipolar. 2-pin. Temperature sensor;2-pole. 2-pin. Heating water valve,temperature sensor,electro-magnet valves;bipolar. 2-pin.
MSRP $3.20
$2.41
MSRP $3.20
$2.41
116
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Description: To 010 545 10 28. Upper part. To 008 545 37 28. Buzzer contact.
MSRP $2.40
$1.78
MSRP $2.40
$1.78
119
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Sensor. Instrument cluster. On-board computer keyboard. Final controlling element. 8-pole. Control unit. Belt warning device. Tell-tale lamp.
125
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
MSRP $2.70
$2.03
MSRP $2.70
$2.03
140
Socket Mercedes-Benz
Mercedes-Benz Description: Lighting of gear indicator. Lamp control. Tell-tale lamp airbag. Windshield-washer-fluid control. Shift gate illumination. Bipolar. Tell-tale lamp abs/asr. Pre-glow indicator. Tell-tale lamp 4-matic. (oxygen sensor exchange indicator).
143
Socket Mercedes-Benz
Mercedes-Benz Description: Heating control lighting. Lighting of operating unit. Blower switch and heating control. Bulb.
155
Rubber Grommet Mercedes-Benz
Mercedes-Benz Description: Fuel pump branch-off to luggage compartment floor. Electric cable thru tunnel. Entrance lamp. At blower;module box cooling. Capillary tube and choke cable thru fire wall. Automatic transmission branch-off. Solenoid switch branch-off. Capillary tube to fire wall.
MSRP $2.70
$2.03
MSRP $2.70
$2.03
170
Screw Mercedes-Benz
Mercedes-Benz Description: Cd changer to bracket. Mounting at console. Control module mounting.
MSRP $1.20
$0.89
MSRP $1.20
$0.89
173
Spring Lock Washer Mercedes-Benz
Mercedes-Benz Description: Cables to cable connector. At front center stiffening. Blinker & tempomat switches to steering column jacket tube. Cable to resistor. Main cable harness to radiator baffle, right. Starting cable to cable connector.
MSRP $1.40
$1.02
MSRP $1.40
$1.02
182
MSRP $3.50
$2.67
188
Nut Mercedes-Benz
Mercedes-Benz Description: Light switch to instrument panel. Light rotary switch. Operating unit. Central covering to heater case. Air-conditioner temperature/vacuum switch to covering in case.
MSRP $3.70
$2.79
MSRP $3.70
$2.79
203
Stopper Washer Mercedes-Benz
Mercedes-Benz Description: Right upper firewall. 38 MM. Spare wheel well 38 mm. 38 mm. On fire wall. 38 mm. Interior part,front 38 mm. 38 mm. In reinforcement shoulder left 38 mm. 38 mm.
MSRP $11.00
$8.38
MSRP $11.00
$8.38
212
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Engine hood upper catch to engine hood. Flap to hinge m 6x10.
MSRP $2.90
$2.16
MSRP $2.90
$2.16
218
Screw Mercedes-Benz
Mercedes-Benz Description: Ground cable to wheelhouse. Headlamp ground cable to right wheel arch panel. Headlamp ground to radiator baffle plate. Ground connection to tail lamp cable harness. License plate lamp to rear bumpen.
236
Switch Mercedes-Benz
Mercedes-Benz Description: Foot operated parking brake. For hand brake warning lamp. Engine compartment. Glove compartment lamp. Hand brake control.
242
Spring Washer Mercedes-Benz
Mercedes-Benz Description: Wiper arm with blade to wiper spindle. Drive rod to crank arm. Wiper arm to wiper shaft. Wiper arm on spindle.
MSRP $1.50
$1.14
MSRP $1.50
$1.14
No.
Part # / Description / Price
Price
62
Receptacle Housing Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR CALIFORNIA
FROM MODEL YEAR '88
FROM MODEL YEAR '88
Description: Overload protector.
MSRP $6.25
$4.70
MSRP $6.25
$4.70
123
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Burglary alarm system control unit. Automatic air conditioner control unit ;14-pole. Seat adjustment control unit. Seat heater relay. 14-pole. Seat heating control unit. Control unit. 14-pole tempomat.
124
127
Plug Pin Mercedes-Benz
Mercedes-Benz Description: To 011 545 10 28. 4.0 mm. To 009 545 14 28. Tempomat(cruise control) plug-connect. To 012 545 84 28. 4.0mm2.
133
Receptacle Mercedes-Benz
Mercedes-Benz Description: To 004 545 94 28. 0.5-1.0 mm2. To 005 545 94 28. 0.5 - 1.0mm2.
MSRP $1.20
$0.89
MSRP $1.20
$0.89
139
Insulating Sleeve Mercedes-Benz
Mercedes-Benz Description: To 000 546 83 40. To 000 546 79 40. To 000 546 583 40. Charge control. Electric cable to pressure switch. Low pressure switch.
140
Socket Mercedes-Benz
Mercedes-Benz Description: Pre-glow indicator. Tell-tale lamp. Blinker control. Safety belt warning lamp. Emergency lantern. Overheat warning indicator. (oxygen sensor exchange indicator). Catalyst exchange indicator.
245
Buzzer Switch Mercedes-Benz
Mercedes-Benz Description: Warning buzzer. Buzzer contact. Steering lock.
MSRP $11.50
$8.64
MSRP $11.50
$8.64
248
MSRP $135.00
$98.82
No.
Part # / Description / Price
Price
128
Plug Housing Mercedes-Benz
Mercedes-Benz Description: Inboard cable harness plug-connection. Starting motor cable harness plugconnection. Fan shroud.
131
Contact Pin Mercedes-Benz
Mercedes-Benz Description: 4.0 MM. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 4.0Release tool: W220 589 01 99 52. TO 009 545 53 28/56 28. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: R ...
MSRP $2.40
$1.78
MSRP $2.40
$1.78
143
Socket Mercedes-Benz
Mercedes-Benz Description: Air nozzle lighting. Lighting of rotary light switch escutcheon. Cigar lighter. Ashtray lighting. Lighting of gear indicator. Heating control lighting.
197
Clamp Mercedes-Benz
Mercedes-Benz Description: Brake line to fire wall. Electric cable to side member. Refrigerant compressor electric cable to oil delivery line clamp. Line to fire wall reinforcement. Electric cable to front seat. Line to right front wheel to body. Cable harness to tunnel. Wire cable to fire wall. Wire cable to right wheel arch panel.
200
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: DOOR TRIM MOUNTING LEFT. 4.2 X 9.5 MMDiameter: 4,2mmThread code letter: R. MOUNTING OF CARRIER. 4.2 X 9.5 MMDiameter: 4,2mmThread code letter: R. Window divider mount, left. 4.2 X 9.5 MMDiameter: 4,2mmThread code letter: R. ANTENNA SPLITTER. 4.2 X 9.5 MMDi ...
MSRP $2.50
$1.91
MSRP $2.50
$1.91
242
Spring Lock Washer Mercedes-Benz
Mercedes-Benz Description: Lower steering shaft to upper steering shaft. Shock absorber to lower control arm. Steering coupling to steering shaft. Steering coupling to steering gear. Backrest adjuster.
MSRP $1.40
$1.02
MSRP $1.40
$1.02
