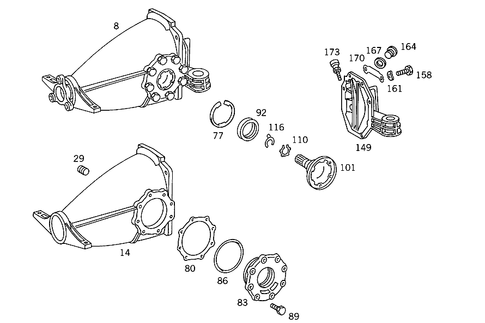

Rear Axle Housing with Differential for 1991 Mercedes-Benz 300SEL
No.
Part # / Description / Price
Price
8
Axle Housing
Mercedes-Benz
Mercedes-Benz Notes: NOT FOR USE WITH ANTI-BLOCK BRAKING SYSTEM
PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
Description: Rear axle housing with differential 1:3.46.
8
Axle Housing Mercedes-Benz
Mercedes-Benz Notes: PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
ONLY USED WITH ANTI-LOCK BRAKING SYSTEM
ONLY USED WITH ANTI-LOCK BRAKING SYSTEM
Description: Rear axle housing with differential abs 1:3.46.
29
Screw Plug Mercedes-Benz
Mercedes-Benz Description: M24x1,5. Oil refilling. For oil drain and oil filler. For oil filler, transmission. (for oil drain and oil filling). (oil filling and oil drain at transmission). For filling in oil or draining off oil resp. At transmission for filling in oil up to transmission 6515822. For oil drain and oil tilling.
50
Differential Side Gear Mercedes-Benz
Mercedes-Benz Description: Used without automatic locking differential (asd).
53
Differential Pinion Mercedes-Benz
Mercedes-Benz Description: Only used with asd. Rear axle output. Differential gear.
59
68
Gearwheel Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH ANTI-LOCK BRAKING SYSTEM
Description: Z=28 1:3.46. Z=26.
71
Screw Mercedes-Benz
Mercedes-Benz Description: Ring gear to differential case. M10x1. Crown gear to differential housing.
74
92
MSRP $33.50
$25.40
101
MSRP $348.00
$243.36
101
110
110
110
MSRP $10.50
$7.75
110
MSRP $12.00
$9.02
110
MSRP $6.75
$5.08
116
Snap Ring Mercedes-Benz
Mercedes-Benz Description: As required 1.75 mm. Axle shaft flange to axle housing.
MSRP $1.20
$0.89
MSRP $1.20
$0.89
119
122
MSRP $122.00
$89.06
125
Spacer Bush Mercedes-Benz
Mercedes-Benz Description: Pinion bearing. Only used with asd. Drive pinion.
MSRP $12.00
$8.89
MSRP $12.00
$8.89
128
Friction Washer Mercedes-Benz
Mercedes-Benz Description: Drive pinion. Pinion bearing. Only used with asd.
MSRP $3.00
$2.29
MSRP $3.00
$2.29
131
Tapered Roller Bearing Mercedes-Benz
Mercedes-Benz Description: Drive pinion bearing. Outer bevel gear.
MSRP $42.50
$32.39
MSRP $42.50
$32.39
137
MSRP $11.50
$8.51
137
MSRP $34.50
$26.04
140
MSRP $154.00
$112.24
143
Collar Nut, Ra Transmission Mercedes-Benz
Mercedes-Benz Description: M26X1.5
Diameter: 26mm
Strength / hardness class: ST
Thread code letter: M
Thread pitch: 1,5mm
Outside diameter: 38mm
Width across flats: 30mm. Joint flange to bevel gear. Screw fitting joint flange. Flange to drive pinion. Only used with asd.
Diameter: 26mm
Strength / hardness class: ST
Thread code letter: M
Thread pitch: 1,5mm
Outside diameter: 38mm
Width across flats: 30mm. Joint flange to bevel gear. Screw fitting joint flange. Flange to drive pinion. Only used with asd.
MSRP $7.50
$5.72
MSRP $7.50
$5.72
167
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: OIL DRAIN, PORTAL AXLE LH
Strength / hardness class: AL
Inside diameter: 24mm
Outside diameter: 29mm
Material thickness: 2mm. To left housing
Strength / hardness class: AL
Inside diameter: 24mm
Outside diameter: 29mm
Material thickness: 2mm. To left portal transmission
Strength / hardness class: AL
Inside diameter: 24mm
Outside diameter: 29mm
Material thickness: 2mm.
Strength / hardness class: AL
Inside diameter: 24mm
Outside diameter: 29mm
Material thickness: 2mm. To left housing
Strength / hardness class: AL
Inside diameter: 24mm
Outside diameter: 29mm
Material thickness: 2mm. To left portal transmission
Strength / hardness class: AL
Inside diameter: 24mm
Outside diameter: 29mm
Material thickness: 2mm.
MSRP $1.40
$1.02
MSRP $1.40
$1.02
173
Breather Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Rear axle housing with differential. M 14 x 1,5. Differential gear. Right m 14x1,5.
MSRP $94.00
$68.32
MSRP $94.00
$68.32
