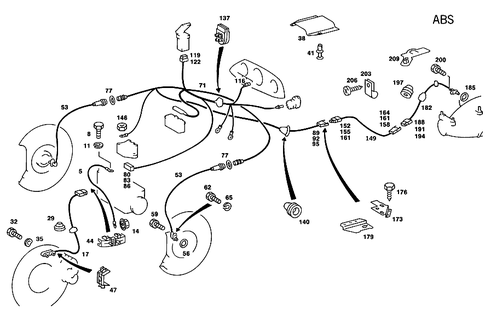

Brake Lining Wear Indicator and Antilock Braking System for 1991 Mercedes-Benz 560SEL
No.
Part # / Description / Price
Price
5
Ground Line
Mercedes-Benz
Mercedes-Benz Notes: USED WITH ACCELERATION SKID CONTROL (ASR)
Description: Hydraulic unit. Only used with acceleration skid control (asr).
8
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Amplifier at c-pillar. Amplifier to bracket. Reinforcem. At bracket, left.
MSRP $3.50
$2.67
MSRP $3.50
$2.67
17
Electrical Wiring Harness Mercedes-Benz
Mercedes-Benz Description: Brake lining wear indicator,right.
MSRP $60.00
$43.67
MSRP $60.00
$43.67
17
Electrical Wiring Harness Mercedes-Benz
Mercedes-Benz Description: Brake lining wear indicator,left.
MSRP $55.00
$40.59
MSRP $55.00
$40.59
29
MSRP $6.00
$4.57
32
MSRP $2.40
$1.78
44
47
Holder Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH ANTI-LOCK BRAKING SYSTEM
Description: Additional cable harness.
80
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Description: Hydraulic unit. 12-pin. 10-pole. 12-pin. Test instrument connection. 12-pole. 12-pin. Plug, 12-pin. 12-pin. Switchgear, 12-pole. 12-pin.
86
MSRP $3.70
$2.82
92
Cap Mercedes-Benz
Mercedes-Benz Description: Blower. 2-pin rk4. Back-up lamp cable. 2-pin rk4. To a 008 545 09 28. 2-pin rk4. To a 008 545 08 28. 2-pin rk4. Secondary air pump m33. 2-pin rk4. To 008 545 08 28/008 545 09 28. 2-pin rk4. Air injection m33. 2-pin rk4.
95
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
MSRP $3.40
$2.54
MSRP $3.40
$2.54
122
Contact Socket Mercedes-Benz
Mercedes-Benz Description: D 4,0mm. 4.0 mm. To 014 545 91 28. To 015 545 56 28,015 545 57 28. 4mm (to 015 545 29 28). 4 mm2.
137
Grommet Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Brake fluid control branch-off. Electric cable thru fuse box and relay case. Electric cable thru fire wall. Right. Electric cable thru tunnel.
149
155
Plug Pin Mercedes-Benz
Mercedes-Benz Description: 4MM. 4.0mm2. Fan. 4.0mm2. TO 008 545 10 28. 4.0mm2.
MSRP $2.70
$2.03
MSRP $2.70
$2.03
161
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Description: Inductive pickup to 008 545 08 28. Belt lock,left front seat to 008 545 08 28. Only for use with air conditioner. Throttle body to 008 545 08 28. To 008 545 08 28, 008 545 09 28. To 008 545 10 28.
176
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Front fender to wheelhouse bracket. 4.8x13. Partition panel to fire wall,wheelhouse,connection support,and console. 4.8x13. Mounting, cover. 4.8x13. To 140 470 04 47. 4.8x13. Control unit. 4.8x13. Cooling pipe to side member and to engine cross member. 4.8x13. Line to upper rear wall. 4.8x13. High pressure line to subframe. 4.8x13. Screening below gear lever. 4.8x13. Heat shield mounting. 4.8x13.
MSRP $2.00
$1.52
MSRP $2.00
$1.52
182
Rotational Speed Sensor Mercedes-Benz
Mercedes-Benz Notes: USED WITHOUT ACCELERATION SKID CONTROL (ASR)
Description: Rear axle.
185
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: Used with steel version. Outboard rpm sensor, left and right.
MSRP $2.00
$1.52
MSRP $2.00
$1.52
203
Clamp Mercedes-Benz
Mercedes-Benz Description: Electric cable to rear panel. Sender unit cable to rear panel. Brake lining wear indicator cable to rear axle. Electric cables to main floor. Cable harness mounting. Safety belt branch-off to cross member. Wire, lock switch. Front seat vacuum element. Electric cable to side member.
206
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: DOOR TRIM MOUNTING LEFT. 4.2 X 9.5 MMDiameter: 4,2mmThread code letter: R. MOUNTING OF CARRIER. 4.2 X 9.5 MMDiameter: 4,2mmThread code letter: R. Window divider mount, left. 4.2 X 9.5 MMDiameter: 4,2mmThread code letter: R. ANTENNA SPLITTER. 4.2 X 9.5 MMDi ...
MSRP $2.50
$1.91
MSRP $2.50
$1.91
