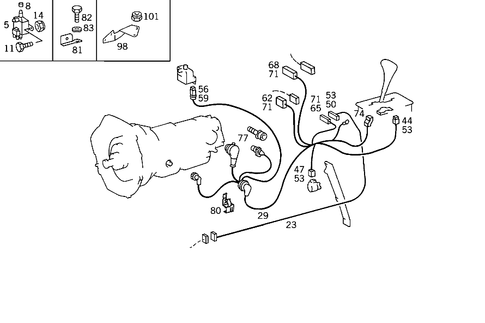

Electrical Parts Used for Transmission for 1993 Mercedes-Benz 400SEL
No.
Part # / Description / Price
Price
8
Sieve Insert
Mercedes-Benz
Mercedes-Benz Description: Solenoid valve. To valve. Exhaustgas recirculation. Electric change-over valve.
MSRP $4.50
$3.43
MSRP $4.50
$3.43
11
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: At bracket. M5x12. At console. At radiator. Fastening for lining. Fastening of cable bracket. Mounting, tank.
MSRP $1.70
$1.27
MSRP $1.70
$1.27
29
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.:
A 328810
EXCEPT CODE 807
ALSO INSTALLED IN VEHICLE FROM A 328811 WITH CODE 806
FROM, SEE TU 54/121
FROM, SEE TU 54/121
Description: Automatic transmission.
32
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Interior lamps. 2-pin. Belt locking retractor. 2-pin. Dome lamp,front. 2-pin. Unipolar. 2-pin. Economy drive switch. 4-pole. 2-pin. Trunk lid. 2-pin. Stop light switch 2 polig. 2-pin. Asd/asr. 2-pin. Thermo-switch heating washer system. 2-pin. Parking brake control. 2-pin.
41
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
MSRP $2.70
$2.03
MSRP $2.70
$2.03
47
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Kick-down switch. 4-pin. Economy drive switch. 4-pole. 4-pin.
53
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 4 MM. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. 2,5 (AX). 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Ma ...
MSRP $2.90
$2.16
MSRP $2.90
$2.16
56
MSRP $8.00
$6.10
59
MSRP $4.50
$3.43
62
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Diagnosis ezl. Electronic accelerator cable-harness plug-connection. Multiple function strip.
68
Plug Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Declutching-start/back-up-light switch plug connection. Engine cable harness plug-connection. Tail lamp cable harness plugconnection.
71
Contact Pin Mercedes-Benz
Mercedes-Benz Description: To 016 545 01 28. 0.35-2.5 mm2 rk2.5. To 020 545 49 28. 0.35-2.5 mm2 rk2.5. 0,5-1,0mm2, to 023 545 52 28. 0.35-2.5 mm2 rk2.5. Only used with acceleration skid control (asr). 0.35-2.5 mm2 rk2.5. (lock angle sensor) 4.0 mm. 0.35-2.5 mm2 rk2.5. 2,5mm. 0.35-2.5 mm2 rk2.5. 0.25-2.5 mm. 0.35-2.5 mm2 rk2.5.
MSRP $7.75
$5.84
MSRP $7.75
$5.84
82
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Engine hood upper catch to engine hood. Flap to hinge m 6x10.
MSRP $2.90
$2.16
MSRP $2.90
$2.16
98
Holder Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.:
A 328810
EXCEPT CODE 807
ALSO INSTALLED IN VEHICLE FROM A 328811 WITH CODE 806
NO LONGER AVAILABLE
NO LONGER AVAILABLE
Description: Valve to body.
104
Electrical Wiring Harness Mercedes-Benz
Mercedes-Benz Description: Only used with hitching mechanism. Transmission oil cooling system.
108
Housing Upper Part Mercedes-Benz
Mercedes-Benz Description: To 009 545 78 28. To 009 545 80 28. Pin bushing housing 6-polig. To 006 545 08 28. To 006 545 78 28 (asr). 6-pole. To 006 545 80 28,123 545 06 28. (plug upper part).
MSRP $3.20
$2.41
MSRP $3.20
$2.41
113
MSRP $3.70
$2.82
122
Contact Spring Mercedes-Benz
Mercedes-Benz Description: Fuse and relay module, driver k40/2. Fuse and relay module, front passenger k40/4. FUSE AND RELAY BOX,DRIVER. 1.0-2.5 MM2 SPT
Leitungsquerschnitt Min/Max: 1,0-2,5mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: SPT
Release tool: W000 589 13 99 30.
Leitungsquerschnitt Min/Max: 1,0-2,5mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: SPT
Release tool: W000 589 13 99 30.
MSRP $4.90
$3.68
MSRP $4.90
$3.68
122
Contact Spring Mercedes-Benz
Mercedes-Benz Description: Fuse and relay module, driver k40/2. L3. 0.5-1.0 MM2 SPTLeitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PINs: SnELA: -Model 1: SPTRelease tool: W000 589 13 99 30. Copper. 0.5-1.0 MM2 SPTLeitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PI ...
MSRP $3.90
$2.92
MSRP $3.90
$2.92
