Closed Fuel-Evaporation-Control System for 2005 Mercedes-Benz CLK500
No.
Part # / Description / Price
Price
10

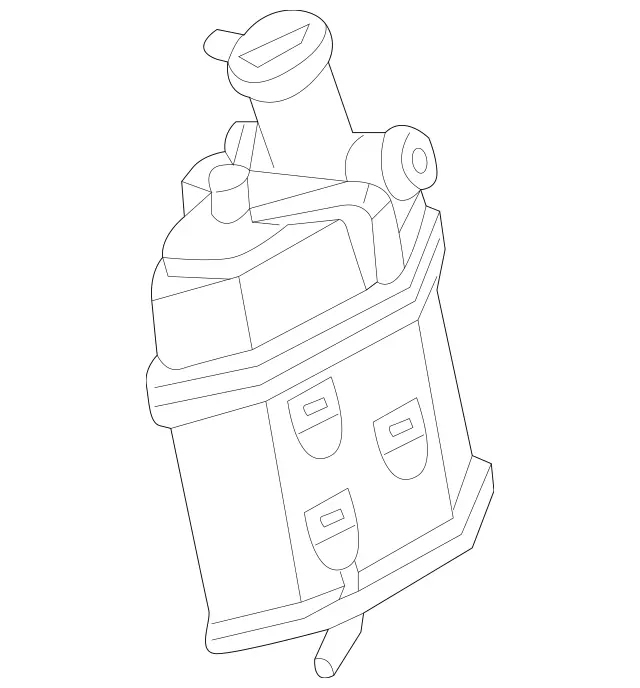

Activated Charcoal Filter
Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Evaporative emission control system.
10
Activated Charcoal Filter Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Evaporative emission control system.
20
Activated Charcoal Filter Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Evaporative emission control system.
20
Activated Charcoal Filter Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Evaporative emission control system.
25
Valve Mercedes-Benz
Mercedes-Benz Description: Shutoff valve. Shut-off valve. Evaporative emission control system. Activated charcoal filter.
MSRP $164.00
$119.56
MSRP $164.00
$119.56
28
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: Activated charcoal filter. Shutoff valve activated-carbon filter. At valve.
29
Electrical Wiring Harness Mercedes-Benz
Mercedes-Benz Description: Shutoff valve adapter line. Activated charcoal filter shutoff valve.
MSRP $21.00
$15.88
MSRP $21.00
$15.88
30
Hose Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: 160 mm. 13.3x3 mm. From fuel filter to feed line. 13.3x3 mm. 300 mm. 13.3x3 mm. 110mm. 13.3x3 mm. Order by the meter. 13.3x3 mm. 250 mm. 13.3x3 mm. From activated charcoal filter to regeneration valve. 13.3x3 mm. 100 mm from fuel return line to fuel tark. 13.3x3 mm.
MSRP $32.50
$24.77
MSRP $32.50
$24.77
30
Hose Mercedes-Benz
Mercedes-Benz Description: From activated charcoal filter to regeneration line. Activated charcoal filter for purge line.
60
Vent Tube Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: From activated charcoal filter to regeneration line.
60
Vent Tube Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: From activated charcoal filter to regeneration line.
70
Hose Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: Fluid reservoir. Between tube and purge valve. From activated charcoal filter to regeneration valve. Regeneration line to distributor. Molded hose. Regeneration valve to intake pipe. At sender unit. Distributor to regeneration valve, right. Regeneration line to regeneration valve.
MSRP $7.50
$5.72
MSRP $7.50
$5.72
80
Purge Valve Mercedes-Benz
Mercedes-Benz Description: Regeneration valve. Evaporative emission control system. In engine compartment.
110
Hose Mercedes-Benz
Mercedes-Benz Description: Fluid reservoir. Purge valve to connecting point. Activated charcoal filter to purge valve. Regeneration valve to throttle housing. To purge line. At intake manifold. Molded hose. From regeneration line to engine. Intake manifold to purge valve,left. From right regeneration valve to engine.
120
Clamp Mercedes-Benz
Mercedes-Benz Description: Fuel filter to act. CARBON FILTER. 13-14/8.2 MMDiameter: 13mmInside diameter: 13,5mmOutside diameter: 15mmMaterial thickness: 0,6mmModel 1: Gelb. BETWEEN ACTIVATED CHARCOAL FILTER AND REGENERATION VALVE. 13-14/8.2 MMDiameter: 13mmInside diameter: 13,5mmOut ...
MSRP $3.50
$2.67
MSRP $3.50
$2.67
120
MSRP $3.40
$2.54
120
Hose Clamp Mercedes-Benz
Mercedes-Benz Description: Cexpansion reservoir to activated charcoal filter. 13mm.
MSRP $7.00
$5.33
MSRP $7.00
$5.33
140
Spring Hose Clamp Mercedes-Benz
Mercedes-Benz Description: Hose to activated charcoal filter. 27-30 mm. Mount, water drain at top. 27-30 mm. Hose attachment. 27-30 mm. Filler neck to charcoal filter. 27-30 mm. Return. 27-30 mm. Hose to engine. 27-30 mm. Hose to additional water pump. 27-30 mm. To coolant hose. 27-30 mm. From pump to heat exchanger. 27-30 mm. Low temperature pump. 27-30 mm.
MSRP $6.50
$4.83
MSRP $6.50
$4.83
150
Vent Tube Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Purge valve to engine. Regeneration valve to engine.
180
MSRP $27.50
$20.96
180
180
Damping Container Mercedes-Benz
Mercedes-Benz Description: Regeneration line. To purge line and valve.
MSRP $84.00
$61.50
MSRP $84.00
$61.50
200
MSRP $10.00
$7.62
900
Plug Mercedes-Benz
Mercedes-Benz Description: Shutoff valve activated-carbon filter y58/1. 2-pin slk2.8. (switchover valve), for activated charcoal filter y58/1. 2-pin slk2.8. Regeneration valve y58. 2-pin slk2.8.
MSRP $4.00
$3.05
MSRP $4.00
$3.05
915
Electric Line Mercedes-Benz
Mercedes-Benz Notes: CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED.
SEE WIS FOR REPAIR INSTRUCTIONS.
=================================================================================================
SOLDER CONNECTOR SLEEVES: TOTAL WIRE CROSS-SECTION:
A 001 546 99 41 GREEN 0.7 - 2.4 MM2
A 002 546 00 41 RED 2.0 - 4.0 MM2
A 002 546 01 41 BLUE 3.5 - 8.0 MM2
A 002 546 11 41 YELLOW 7.5 - 12.0 MM2
BUTT JOINT:
A 002 546 13 41 0.5 MM2
A 002 546 14 41 0.8 MM2
A 002 546 15 41 1.3 MM2
A 002 546 16 41 2.0 MM2
===================================================================================================
MSRP $8.00
$5.97
MSRP $8.00
$5.97
