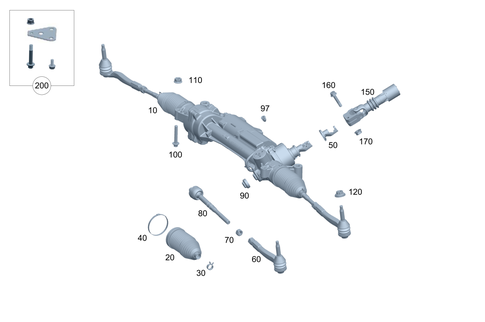

Steering Gear for 2020 Mercedes-Benz CLS53 AMG
No.
Part # / Description / Price
Price
10
Steering Gear
Mercedes-Benz
Mercedes-Benz Notes: PART MUST BE CHECKED FOR CURRENT FLASHWARE AFTER INSTALLAT ION
PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
Description: Steering gear, electric. Power steering system. Complete.
MSRP $3,520.00
$2,405.40
MSRP $3,520.00
$2,405.40
10
Steering Gear Mercedes-Benz
Mercedes-Benz Notes: PART MUST BE CHECKED FOR CURRENT FLASHWARE AFTER INSTALLAT ION
PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
Description: Power steering system. Complete. Steering gear, electric.
10
Steering Gear Mercedes-Benz
Mercedes-Benz Notes: PART MUST BE CHECKED FOR CURRENT FLASHWARE AFTER INSTALLAT ION
PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
Description: Steering gear, electric. Power steering system. Complete.
10
Steering Gear Mercedes-Benz
Mercedes-Benz Notes: PART MUST BE CHECKED FOR CURRENT FLASHWARE AFTER INSTALLAT ION
PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
Description: Complete.
20
MSRP $59.00
$43.05
30
Boot Kit Clamp Mercedes-Benz
Mercedes-Benz Description: OUTSIDE LEFT AND RIGHT. 12-21 MM
Diameter: 20,3-22,5mm
Material thickness: 1,3mm
Model 1: Dunkelgrau. Outer. HOSE ATTACHMENT. 12-21 MM
Diameter: 20,3-22,5mm
Material thickness: 1,3mm
Model 1: Dunkelgrau. EXPANSION TANK. 12-21 MM
Diameter: 20,3-22,5mm
Material thickness: 1,3mm
Model 1: Dunkelgrau.
Diameter: 20,3-22,5mm
Material thickness: 1,3mm
Model 1: Dunkelgrau. Outer. HOSE ATTACHMENT. 12-21 MM
Diameter: 20,3-22,5mm
Material thickness: 1,3mm
Model 1: Dunkelgrau. EXPANSION TANK. 12-21 MM
Diameter: 20,3-22,5mm
Material thickness: 1,3mm
Model 1: Dunkelgrau.
MSRP $4.50
$3.43
MSRP $4.50
$3.43
40
MSRP $27.00
$20.32
50
MSRP $6.25
$4.70
60
MSRP $102.00
$74.42
60
MSRP $120.00
$87.84
70
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M14X1.5
Diameter: 14mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 21mm. Tie rod to steering arm. Energy-absorbing unit to plate. Cross strut to shackle. Outside left. Track rod left. Mounting and clamp to energy-absorbing unit.
Diameter: 14mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 21mm. Tie rod to steering arm. Energy-absorbing unit to plate. Cross strut to shackle. Outside left. Track rod left. Mounting and clamp to energy-absorbing unit.
80
MSRP $100.00
$73.20
97
MSRP $22.00
$16.51
100
Hex Head Screw W Flange Mercedes-Benz
Mercedes-Benz Description: Steering to front integral carrier. M12x1,5x95. Steering gear to integral carrier, rear.
MSRP $15.00
$11.30
MSRP $15.00
$11.30
100
Hex Head Screw W Flange Mercedes-Benz
Mercedes-Benz Description: M12x1,5x100. Steering gear to integral carrier, rear. Steering to front integral carrier.
MSRP $15.00
$11.43
MSRP $15.00
$11.43
110
Nut-And-Washer Assembly Mercedes-Benz
Mercedes-Benz Description: M12
Diameter: 12mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Outside diameter: 32mm
Width across flats: 18mm. Steering gear mount. Steering gear to integral carrier, rear. Torsion bar linkage mount.
Diameter: 12mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Outside diameter: 32mm
Width across flats: 18mm. Steering gear mount. Steering gear to integral carrier, rear. Torsion bar linkage mount.
MSRP $5.75
$4.32
MSRP $5.75
$4.32
120
Nut-And-Washer Assembly Mercedes-Benz
Mercedes-Benz Description: M14x1,5. Transverse cont. Arm left to steering knuckle. Tie rod to steering knuckle.
150
MSRP $197.00
$138.06
150
MSRP $360.00
$251.55
150
Steering Coupling Mercedes-Benz
Mercedes-Benz Notes: PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
Description: Steering coupling.
160
Flat Head Screw Mercedes-Benz
Mercedes-Benz Description: Steering coupling to steering gear M8X31. Screw universal joint.
160
Screw Mercedes-Benz
Mercedes-Benz Description: Steering coupling to steering gear. M8x39. Steering joint to steering gear and to steering shaft. Steering coupling to steering shaft and to steering. Lower steering shaft to upper steering shaft. Steering coupling to steering shaft m8 x 40. Screw universal joint. Steering coupling to steering shaft m8 x 39.
200
MSRP $85.00
$62.22
