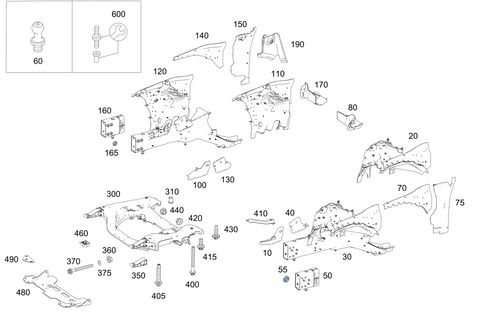

Wheelhouse, Front Subframe for 2020 Mercedes-Benz S65 AMG
No.
Part # / Description / Price
Price
10
Console
Mercedes-Benz
Mercedes-Benz Notes: TO ENSURE VEHILCE SAFETY THIS STRUCTUR PART MAY BE INSTALLED ONLY BY CERTIFIED WELDER
Description: Front bottom left.
20
Console Mercedes-Benz
Mercedes-Benz Notes: TO ENSURE VEHILCE SAFETY THIS STRUCTUR PART MAY BE INSTALLED ONLY BY CERTIFIED WELDER
Description: Front left.
30
Longitudinal Member Mercedes-Benz
Mercedes-Benz Notes: TO ENSURE VEHILCE SAFETY THIS STRUCTUR PART MAY BE INSTALLED ONLY BY CERTIFIED WELDER
Description: Console left.
40
Console Mercedes-Benz
Mercedes-Benz Notes: TO ENSURE VEHILCE SAFETY THIS STRUCTUR PART MAY BE INSTALLED ONLY BY CERTIFIED WELDER
Description: Rear bottom left.
60
Ball Stud Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Gas-filled strut at left to engine hood. On spring dome,right. Right wheel well. To left holder. Ball stud, gas-filled strut, left, engine hood. Pneumatic spring. Gas pressure spring to engine hood. Left longitudinal member. Right wheelhouse. Left and right.
80
Cross-Member Mercedes-Benz
Mercedes-Benz Notes: TO ENSURE VEHILCE SAFETY THIS STRUCTUR PART MAY BE INSTALLED ONLY BY CERTIFIED WELDER
Description: Left pedal floor panel.
100
MSRP $274.00
$191.88
120
Longitudinal Member Mercedes-Benz
Mercedes-Benz Notes: TO ENSURE VEHILCE SAFETY THIS STRUCTUR PART MAY BE INSTALLED ONLY BY CERTIFIED WELDER
Description: Console right.
130
Console Mercedes-Benz
Mercedes-Benz Notes: TO ENSURE VEHILCE SAFETY THIS STRUCTUR PART MAY BE INSTALLED ONLY BY CERTIFIED WELDER
Description: Rear bottom right.
MSRP $264.00
$184.86
MSRP $264.00
$184.86
140
MSRP $322.00
$225.81
160
MSRP $970.00
$661.20
170
Cross-Member Mercedes-Benz
Mercedes-Benz Notes: TO ENSURE VEHILCE SAFETY THIS STRUCTUR PART MAY BE INSTALLED ONLY BY CERTIFIED WELDER
Description: Right pedal floor panel.
310
Blind Clinch Nut Mercedes-Benz
Mercedes-Benz Description: M10. In integral carrier. Frame-type int. Support. Rear cross member. Left rear. Rear carrier.
MSRP $6.00
$4.45
MSRP $6.00
$4.45
310
Rivet Nut Mercedes-Benz
Mercedes-Benz Description: Frame-type int. Support. M10. Front cross member.
MSRP $8.50
$6.48
MSRP $8.50
$6.48
350
MSRP $110.00
$80.52
375
Window Mercedes-Benz
Mercedes-Benz Description: BEARING TO REAR AXLE
Diameter: 15mm
Inside diameter: 15mm
Outside diameter: 50mm
Material thickness: 2mm. INTEGRAL CARRIER TO LONGITUDINAL MEMBER, FRONT
Diameter: 15mm
Inside diameter: 15mm
Outside diameter: 50mm
Material thickness: 2mm. DIFFERENTIAL TO CROSS STABILIZER FRONT
Diameter: 15mm
Inside diameter: 15mm
Outside diameter: 50mm
Material thickness: 2mm.
Diameter: 15mm
Inside diameter: 15mm
Outside diameter: 50mm
Material thickness: 2mm. INTEGRAL CARRIER TO LONGITUDINAL MEMBER, FRONT
Diameter: 15mm
Inside diameter: 15mm
Outside diameter: 50mm
Material thickness: 2mm. DIFFERENTIAL TO CROSS STABILIZER FRONT
Diameter: 15mm
Inside diameter: 15mm
Outside diameter: 50mm
Material thickness: 2mm.
400
Self-Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Integral carrier at longitudinal member, center. M10x105. Cross member connection. Bearing bracket to rear axle carrier.
MSRP $11.50
$8.64
MSRP $11.50
$8.64
400
Self-Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Integral carrier at longitudinal member, center. Front frame-type integral support.
MSRP $22.00
$16.51
MSRP $22.00
$16.51
405
Self-Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Integral carrier to longitudinal member, front. M14x75.
MSRP $14.00
$10.54
MSRP $14.00
$10.54
430
Self-Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Console to side member left. M12x1,5x43.
MSRP $10.00
$7.62
MSRP $10.00
$7.62
460
Mount Mercedes-Benz
Mercedes-Benz Description: Jack take-up device on frame-type integral support.
MSRP $8.00
$5.97
MSRP $8.00
$5.97
490
Mounting Plate Mercedes-Benz
Mercedes-Benz Description: Steering to frame-type integral support. Steering to integral carrier, right.
MSRP $7.00
$5.21
MSRP $7.00
$5.21
600
Threaded Pin Mercedes-Benz
Mercedes-Benz Description: Repair solution for broken weld stud. (parts kit),line mounting. (parts kit) on left and right wheelhouses. Fuel and brake lines to main floor, left. Wheelhouse covering. Repair solution for ruptured welded pins menge nach bedarf.
MSRP $35.00
$26.67
MSRP $35.00
$26.67
