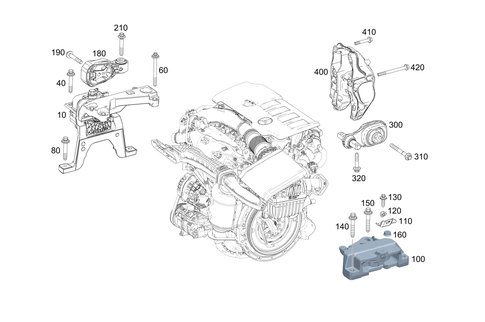

Engine Suspension for 2021 Mercedes-Benz A35 AMG
No.
Part # / Description / Price
Price
10
MSRP $332.00
$232.83
40
Screw W Washer Assembly
Mercedes-Benz
Mercedes-Benz Description: Steering gear bracket to subframe, lh. M10x1,5x35. Mount for engine mount, right. Cross strut to longitudinal member. Left front reinforcement plate. Engine mount to wheel well, right.
MSRP $2.20
$1.65
MSRP $2.20
$1.65
60
Screw W Washer Assembly Mercedes-Benz
Mercedes-Benz Description: Engine to front engine mount. M10x116,5.
MSRP $15.00
$11.11
MSRP $15.00
$11.11
80
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Engine mount to longitudinal member, right. M12X1,5X60
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Transmission mount to longitudinal member.
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Transmission mount to longitudinal member.
MSRP $3.50
$2.67
MSRP $3.50
$2.67
100
MSRP $276.00
$193.05
110
Holder, Transmission Mount Mercedes-Benz
Mercedes-Benz Description: To bearing bracket. Transmission mount, left. Transmission suspension to wheel well, left.
130
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Attachment, gearbox mount lh. M10X30-10.9
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Holder to transmission mount. Air venting system to holder. Left mount for transmission mount. At frame, left.
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Holder to transmission mount. Air venting system to holder. Left mount for transmission mount. At frame, left.
MSRP $2.90
$2.16
MSRP $2.90
$2.16
150
Screw W Washer Assembly Mercedes-Benz
Mercedes-Benz Description: Transmission mount to transmission. Holder to transmission. To transmission, left. Engine mount to supporting frame, right.
MSRP $11.00
$8.38
MSRP $11.00
$8.38
210
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Steering gear to integral carrierDiameter: 12mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1,5mm. Wheel bearing to left steering knuckle, upper M12X1.5X70Diameter: 12mmStrength / hardness class: 10.9Thread code letter: MThread pitch: ...
MSRP $10.50
$7.75
MSRP $10.50
$7.75
300
Engine Stabilizer Mount Mercedes-Benz
Mercedes-Benz Notes: THE OLD PART MUST NO LONGER BE INSTALLED
Description: Lower rear.
MSRP $169.00
$118.17
MSRP $169.00
$118.17
310
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Pendulum support to integral carrier. M12X110
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Pendulum support at frame-typeintegral support. Bearing bracket to rear axle carrier.
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Pendulum support at frame-typeintegral support. Bearing bracket to rear axle carrier.
MSRP $11.50
$8.64
MSRP $11.50
$8.64
320
Hexalobular Head Screw Mercedes-Benz
Mercedes-Benz Description: Pendulum support to engine. M12x1,5x60. Pendulum support at engine. Pendulum support to support.
MSRP $3.00
$2.29
MSRP $3.00
$2.29
400
MSRP $222.00
$155.61
400
MSRP $218.00
$152.10
