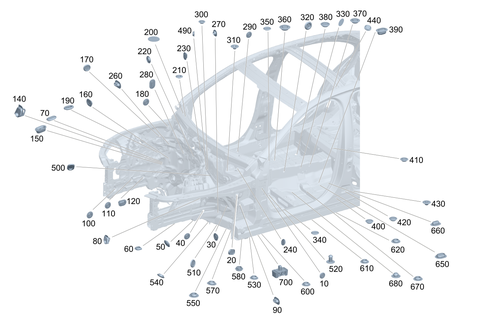

Sealing Washers, Grommets for 2024 Mercedes-Benz E350
No.
Part # / Description / Price
Price
30
Stop Plug
Mercedes-Benz
Mercedes-Benz Description: With high roof. Plug for lock cylinder assembly hole, left. 20 MM. Left front main floor. 20 MM. Left hinge. 20 mm. Left front load compartment well. 20 MM. Left upper crossmember. 20 MM. Longitudinal member bottom rear. 20 mm. Cable boot. 20 MM.
MSRP $4.20
$3.18
MSRP $4.20
$3.18
60
Plug Mercedes-Benz
Mercedes-Benz Description: Lower left front longitudinal member. Lower right crossmember. To left front crossmember. Upper left A-pillar. Lower left longitudinal member, center.
80
Sealing Boot Mercedes-Benz
Mercedes-Benz Description: Coolant hose, front left. Outer left front longitudinal member. Left wheel arch. Upper longitudinal member, left.
150
Grommet, Open, Smooth Mercedes-Benz
Mercedes-Benz Description: For piping. Grommet, piping, battery, 48 V on-board electrical system.
190
Feed-Through Grommet Mercedes-Benz
Mercedes-Benz Description: Lower right partition. Coolant hose, front right. Battery vent hose through floor. Partition panel,bottom right. Left wheel arch. Sidewall, front, right. Wheel well, front, right. Left partition.
MSRP $1.50
$1.14
MSRP $1.50
$1.14
200
Adhesive Tape Precut Part Mercedes-Benz
Mercedes-Benz Description: To crossmember under wind deflector. Right main floor, inner. Right lower firewall. Windshield crossmember. Left inner firewall. Tape.
210
Stop Plug Mercedes-Benz
Mercedes-Benz Description: Center left transmission tunnel. Windshield crossmember. Upper rear panel. Inner upper A-pillar, left. Left or right upper firewall. Left rear roof frame. Crossmember under wind deflector.
220
Stop Plug Mercedes-Benz
Mercedes-Benz Description: Left lower firewall. Left inner firewall. Right inner firewall. Inner center firewall.
440
Window Mercedes-Benz
Mercedes-Benz Description: Paint run-off hole in main floor 23 mm. 22,5 mm. To rear end center assembly. 22,5 mm. Fuel line 23 mm. 22,5 mm. Front panel pillar. 22,5 mm. Left mounting console. 22,5 MM.
MSRP $2.70
$2.03
MSRP $2.70
$2.03
500
Stop Plug Mercedes-Benz
Mercedes-Benz Description: Left front transmission tunnel. 42.2X26.2MM. Center left transmission tunnel. 42.2X26.2MM. Inner left side wall. 42.2x26.2mm. Center tunnel, left front outer. 42.2X26.2MM.
520
Sealing Plug Mercedes-Benz
Mercedes-Benz Description: Left side member, bottom. 8.6 mm. Engine support. 8.6 mm. Lower left and right outer longitudinal member. 8.6 MM. To transmission tunnel. 8.6 MM. At transmission tunnel. 8.6 mm. Left and right side transmission tunnel. 8.6 MM. Longitudinal member, front, left. 8.6 MM. Left and right front transmission tunnel. 8.6 MM.
MSRP $1.90
$1.40
MSRP $1.90
$1.40
580
Water Drain Grommet Mercedes-Benz
Mercedes-Benz Description: To load compartment well. 25MM. Left trunk recess. 25MM.
MSRP $3.40
$2.54
MSRP $3.40
$2.54
700
Fixture For Jack Mercedes-Benz
Mercedes-Benz Description: Stop plug, longitudinal member/vehicle lift support point, front, left. Left front and rear.
MSRP $31.00
$23.50
MSRP $31.00
$23.50
1030
Grommet Mercedes-Benz
Mercedes-Benz Description: Transmission tunnel,rear right. 20x25 mm. Inner left rear passenger compartmentfloor. 20x25 mm. Inner left rear passenger compartment floor. 20X25 MM. Side panel,left. 20x25 mm. C-pillar, upper inner left. 20X25 MM. Paint run-off holes in rear panel. 20x25 mm.
